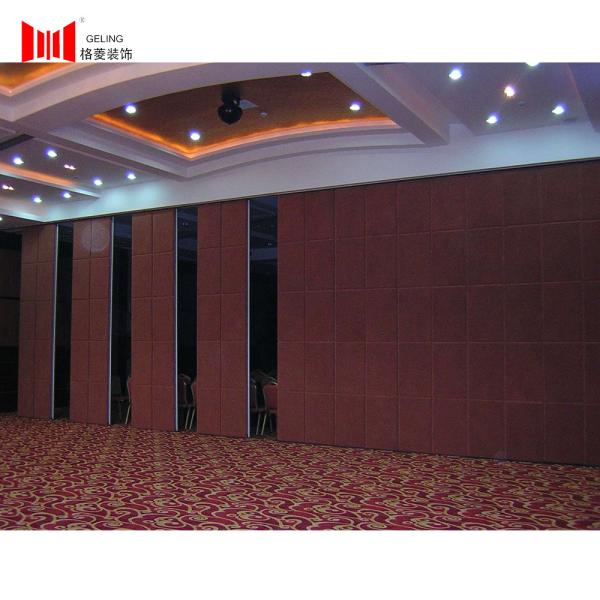

Modern Aluminum Frame Fabric Removable Folding Partition Wall For Hotel:
Product Description:
1. Thickness: 110mm (if add the cushion on the surface, the thickness is 110mm.);
2. Surface: fabric cushion;
3. Color is optional;
4. Frame is 6063-T6 aluminum alloy;
5. Inside Material: 50mm thickness PAR acoustic Absorption Fiberglass;
6. Size is customized according to actually request;
7. Using imported POM hanging wheels;
8. All the foladable wall will be hanged on the aluminum track;
9. Soundproof Factor is 38-45db;
Product General Information:
| Item No. | Panel's Surface | Soundproof
Factor(db) | Partition Load-bearing(KG) | THK
(mm) | Width
(mm) | Height
(mm) | N.W
(kg/㎡) |
| 80-001 | MDF Board
(no melamine paper) | 38 | 450 | 80 | 900/1230 | 2000/5500 | 28 |
| 80-002 | Plywood Board | 38 | 450 | 80 | 900/1230 | 2000/5500 | 28 |
| 80-003 | MDF Board | 38 | 450 | 80 | 900/1230 | 2000/5500 | 28 |
| 80-004 | Fireproof Board | 40 | 450 | 80 | 900/1230 | 2000/5500 | 32 |
| 80-005 | Leather/Fabric Hard Cushion | 40 | 450 | 80 | 900/1230 | 2000/5500 | 32 |
| 80-006 | Mgo Boar | 42 | 450 | 80 | 900/1230 | 2000/5500 | 42 |
| 80-007 | Steel Board | 44 | 450 | 80 | 900/1230 | 2000/5500 | 42 |
| 80-008 | Leather/Fabric Hard Cushion(cover the edge) | 44 | 450 | 110 | 900/1230 | 2000/5500 | 44 |
| 80-009 | Leather/Fabric Soft Cushion(cover the edge) | 44 | 450 | 110 | 900/1230 | 2000/5500 | 44 |
Product Details
We design and manufacture value for many products with one year's warranty on all the outstanding ranges illustrated in this brochure.
They offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
Product Features:
| 1> Movable partition is modernized decoration style. It can separate the space speedy and conveniently. And it has sound insulation and heat insulation and fireproof function. 2> The Partition Board is made from high density s/s frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard; 3> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways; 4> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style; 5> Around the board, there is sound insulation rubber, it can help to insulate the sound entering; 6> The operation ways is much easier, it’s better than the old ways which was use spring before; 7> We can add single or double doors on the board for convenience; 8> We have many different finish to meet customer different requirement and get different decoration effect. |
Product Installation:
| We will provide you a exactly and detailed installation steps according to your project, and provide the reference video, it is very easy to install. |
Why Choose Us?
1. Factory direct offering and sending;
2. Nice quality;
3. Quick shipping with 5-15 days;
4. Small order is welcome;
5. More than 5 years warranty;
6. Support customer designs and OEM ODM service;
7. About 15 years professional producing experience in parttition wall area;
8. Providing targeted installation plan or dispatch professional installor for on-site installation;
Product Parking Types:
Main Accessories and Aluminum Material:
Steel Structure:
| There are three kinds of steel structures, the steel structure is located between ceiling and cement roof, Its function is to connect the partition wall.
1. We only provide the PARTITION WALL, ACCESSORIES and TRACKS;
2. You can buy the steel angle iron in local market and weld the STEEL STRUCTURE according to your actual situation.
3. If you could not buy the steel iron in your market, please send us the height data from ceiling to cement roof, we can provide the steel irons according to your data, and then you can weld the STEEL STRUCTURE at building site. |
Product Sealing:
Frequently Asked Questions:
| Q1. Do you accept customization?
Yes, our all partition walls are customized.
Q2. Need we provide the technical information or drawings?
Yes, we need, this is important.
Q3. What is your warranty time?
5 years guarantee, include all parts and defects.
Q4. Can I have a sample order?
Yes, we welcome sample order to test and check quality, but the sample is not free.
Q5. How do you ship the samples and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. What about the leading time?
Generally speaking, the sample needs 3-5 days, production time needs 10-20 days.
Q7. Do you have any MOQ limit for partition wall order?
The MOQ is 5 square meters.
Q8. Is it OK to print my logo on packing?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q9:What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q10. How do you solve the installation problem?
We will provide targeted installation plan to let you know how to install;
If it is necessary, we will dispatch professional installer to your local install, but you side should be responsible for the cost of the air ticket and accommodation for the whole trip, and 120-200USD one person per day for instructions. |
